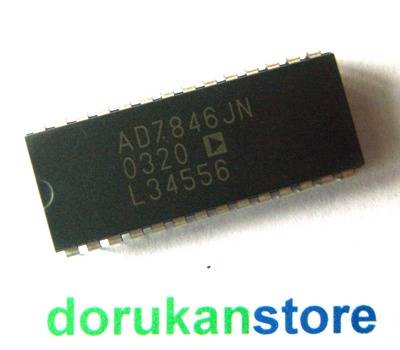

AD7846 ( AD7846JN )
839,64 TL
Kategori
Marka
Dorukan Stok No
DRK-1012-2
Fiyat
20,00 USD + KDV
Havale
814,45 TL
(%3,00 havale indirimi)
16-Bit Voltage Output CMOS DAC
Description
The AD7846 is a 16-bit DAC constructed with Analog Devices'
LC2MOS process. It has VREF+ and VREF- reference inputs
and an on-chip output amplifier.
The AD7846 is a 16-bit DAC constructed with Analog Devices'
LC2MOS process. It has VREF+ and VREF- reference inputs
and an on-chip output amplifier.
Key Specification
• Resolution (Bits) 16bit
• DAC Update Rate 143kSPS
• DAC Settling Time 7µs
• # DAC Outputs 1
• DAC Type Voltage Out
• DAC Input Format Par
• Output FSR : (-Vref), (Bip 2Vref), (Bip Vref), (Uni 2Vref),
(Uni Vref), User Def. Range/Offset Ref Int/Ext Ext
• Supply Vnom Multi(±15, +5Dig)
• Pwr Diss (Max) 155mW
• Resolution (Bits) 16bit
• DAC Update Rate 143kSPS
• DAC Settling Time 7µs
• # DAC Outputs 1
• DAC Type Voltage Out
• DAC Input Format Par
• Output FSR : (-Vref), (Bip 2Vref), (Bip Vref), (Uni 2Vref),
(Uni Vref), User Def. Range/Offset Ref Int/Ext Ext
• Supply Vnom Multi(±15, +5Dig)
• Pwr Diss (Max) 155mW
Features
• 16-Bit Monotonicity over Temperature
• ±2 LSBs Integral Linearity Error
• Microprocessor Compatible with Readback Capability
• Unipolar or Bipolar Output
• Multiplying Capability
• Low Power (100 mW Typical)
• 16-Bit Monotonicity over Temperature
• ±2 LSBs Integral Linearity Error
• Microprocessor Compatible with Readback Capability
• Unipolar or Bipolar Output
• Multiplying Capability
• Low Power (100 mW Typical)
Package : DIP28
