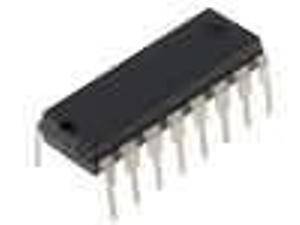

74S175 ( DM74S175N )
8,40 TL
Kategori
Marka
Dorukan Stok No
DRK-1540
Fiyat
0,20 USD + KDV
Havale
8,14 TL
(%3,00 havale indirimi)
74S Serisi
74S175 - Quadruple D-Type Flip-Flops with Clear
These monolithic, positive-edge-triggered flip-flops utilize
TTL circuitry to implement D-type flip-flop logic.
They have a direct clear input, and feature complementary
outputs from each flip-flop.
Information at the D inputs meeting the setup time
requirements is transferred to the Q outputs on the
positive-going edge of the clock pulse. Clock triggering
occurs at a particular voltage level and is not directly related
to the transition time of the positive-going pulse.
When the clock input is at either the high or low level,
the D input signal has no effect at the output.
These circuits are fully compatible for use with most
TTL circuits.
74S175 - Quadruple D-Type Flip-Flops with Clear
These monolithic, positive-edge-triggered flip-flops utilize
TTL circuitry to implement D-type flip-flop logic.
They have a direct clear input, and feature complementary
outputs from each flip-flop.
Information at the D inputs meeting the setup time
requirements is transferred to the Q outputs on the
positive-going edge of the clock pulse. Clock triggering
occurs at a particular voltage level and is not directly related
to the transition time of the positive-going pulse.
When the clock input is at either the high or low level,
the D input signal has no effect at the output.
These circuits are fully compatible for use with most
TTL circuits.
Features
• Contain Four Flip-Flops with Double-Rail Outputs
• Buffered Clock and Direct Clear Inputs
• Individual Data Input to Each Flip-Flop
• Contain Four Flip-Flops with Double-Rail Outputs
• Buffered Clock and Direct Clear Inputs
• Individual Data Input to Each Flip-Flop
Applications
• Buffer/Storage Registers
• Shift Registers
• Pattern Generators
Operating temp. range : 0°C - 70°C
Vcc range : 4,75V - 5,25V
Package : DIP16
• Buffer/Storage Registers
• Shift Registers
• Pattern Generators
Operating temp. range : 0°C - 70°C
Vcc range : 4,75V - 5,25V
Package : DIP16
