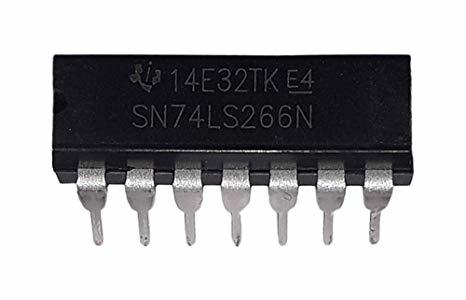

74LS266N RoHS

Manufacturer:

Texas Instruments

Product Category:

Logic Gates

RoHS:

Details

Product:

Single-Function Gate

Logic Function:

XNOR

Logic Family:

LS

Number of Gates:

4 Gate

Number of Input Lines:

2 Input

Number of Output Lines:

1 Output

High Level Output Current:

- 0.1 mA

Low Level Output Current:

8 mA

Propagation Delay Time:

30 ns

Supply Voltage - Max:

5.25 V

Supply Voltage - Min:

4.75 V

Minimum Operating Temperature:

0 C

Maximum Operating Temperature:

+ 70 C

Mounting Style:

Through Hole

Package/Case:

PDIP-14

Packaging:

Tube

Function:

Quad 2-In w/ OC Out

Height:

4.57 mm

Input Type:

TTL

Length:

19.3 mm

Operating Temperature Range:

0 C to + 70 C

Output Type:

TTL

Quiescent Current:

8 mA

Series:

SN74LS266

Width:

6.35 mm

Brand:

Texas Instruments

Logic Type:

2-Input Exclusive-NOR

Number of Bits:

4 bit

Operating Supply Current:

13 uA

Operating Supply Voltage:

5 V

Product Type:

Logic Gates

Factory Pack Quantity:

25

74LS266N RoHS

Manufacturer: Texas Instruments

Product Category: Logic Gates

RoHS: Details

Product: Single-Function Gate

Logic Function: XNOR

Logic Family: LS

Number of Gates: 4 Gate

Number of Input Lines: 2 Input

Number of Output Lines: 1 Output

High Level Output Current: - 0.1 mA

Low Level Output Current: 8 mA

Propagation Delay Time: 30 ns

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Minimum Operating Temperature: 0 C

Maximum Operating Temperature: + 70 C

Mounting Style: Through Hole

Package/Case: PDIP-14

Packaging: Tube

Function: Quad 2-In w/ OC Out

Height: 4.57 mm

Input Type: TTL

Length: 19.3 mm

Operating Temperature Range: 0 C to + 70 C

Output Type: TTL

Quiescent Current: 8 mA

Series: SN74LS266

Width: 6.35 mm

Brand: Texas Instruments

Logic Type: 2-Input Exclusive-NOR

Number of Bits: 4 bit

Operating Supply Current: 13 uA

Operating Supply Voltage: 5 V

Product Type: Logic Gates

Factory Pack Quantity: 25
