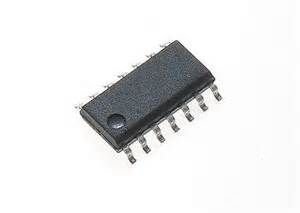

74LS125 SMD ( SN74LS125AD )
(0) Yorum - 0 Puan
Kategori
Dorukan Stok No
DRK-1083-5
Fiyat
0,30 USD + KDV
Havale
12,01 TL
(%3,00 havale indirimi)
12,38 TL
74LS Serisi
74LS125 - Quadruple Bus Buffers With 3-State Outputs
These bus buffers feature three-state outputs that,
when enabled, have the low impedance characteristics
of a TTL output with additional drive capability at high
logic levels to permit driving heavily loaded bus lines
without external pullup resistors. When disabled, both
output transistors are turned off, presenting a
high-impedance state to the bus so the output will act
neither as a significant load nor as a driver.
The LS125 devices’ outputs are disabled when G is high.
Operating temp. range : 0°C - 70°C
Vcc range : 4,75V - 5,25V
Package : SO14
74LS125 - Quadruple Bus Buffers With 3-State Outputs
These bus buffers feature three-state outputs that,
when enabled, have the low impedance characteristics
of a TTL output with additional drive capability at high
logic levels to permit driving heavily loaded bus lines
without external pullup resistors. When disabled, both
output transistors are turned off, presenting a
high-impedance state to the bus so the output will act
neither as a significant load nor as a driver.
The LS125 devices’ outputs are disabled when G is high.
Operating temp. range : 0°C - 70°C
Vcc range : 4,75V - 5,25V
Package : SO14
