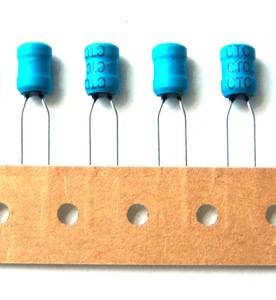

68uH 900mA Kondansatör Tipi Bobin (CH6080680K RoHS)
7,88 TL
Marka
Dorukan Stok No
DRK-MAVİKUTU2-6
Fiyat
0,18 EUR + KDV
Havale
7,64 TL
(%3,00 havale indirimi)
| Features |
| • High-frequency ferrite core • Comparatively large rated current • Radial leads |
 |
| Technical Specifications |
|
|
| Temperature Range: |
-20...+80°C |
| Inductance (DL): |
±10% |
|
|
| Part Nr. |
L |
Q |
fQ |
f |
RDC |
IN |
| [µH] |
[MHz] |
[MHz] |
[W] |
[mA] |
||
| CH6080680K | 68 |
20 |
2,52 |
4,7 |
0,24 |
900 |
| L = Inductance, Q = Quality Class, Min., fQ = Testing Frequency of L and Q, f = Resonance Frequency, Min., RDC = DC Resistance, Max., IN = Rated DC Current |
||||||
 |
||||||
