3 Pin 5mm 250V Yatık Form Terminal Block (CZM5-3SQ)
19,61 TL
| Technical Specifications |
 |
||
| Rated Voltage (EN 60998): |
250V AC |
|
| Rated Current: |
13,5A |
|
| Rated Cross Section Single Stranded Wire: |
0,5...1,5mm2 |
|
| Rated Cross Section Fine Stranded Wire: |
0,5...1mm2 |
|
| Stripped Length: |
6mm |
|
| Insulating Material: |
PC |
|
| Temperature Range: |
-30...+120°C |
|
| Flammability Class: |
UL94V-0 |
|
| Colour: |
Grey |

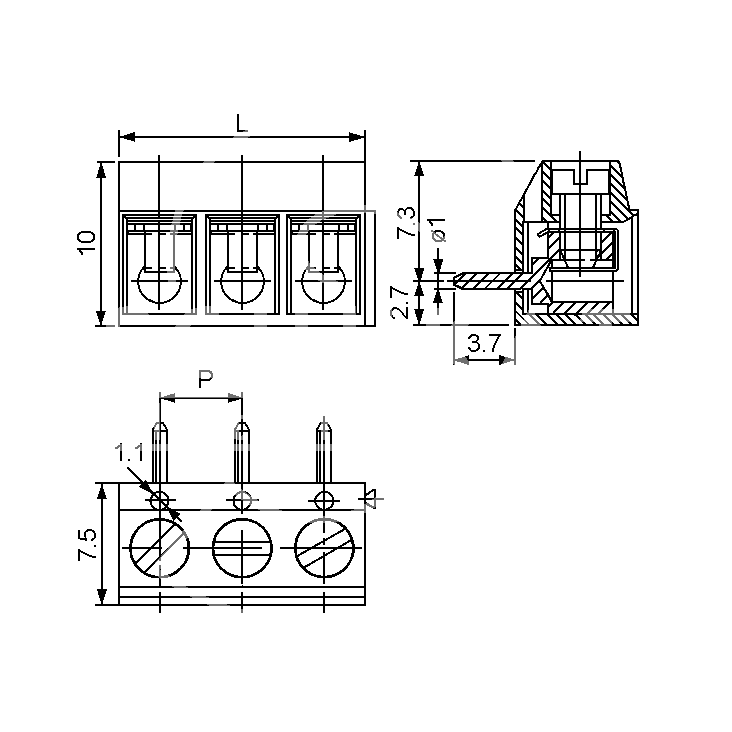

| Dimensions |
| Part Nr. |
L |
P |
|
| [mm] |
[mm] |
||
| CZM5-2SQ | 10 |
5 |
|
| CZM5-3SQ | 15 |
5 |
|
|
|||
| Approvals | |
 EN 60998,  UL1059,  UL1059, C22.2 no. 158 |
|
