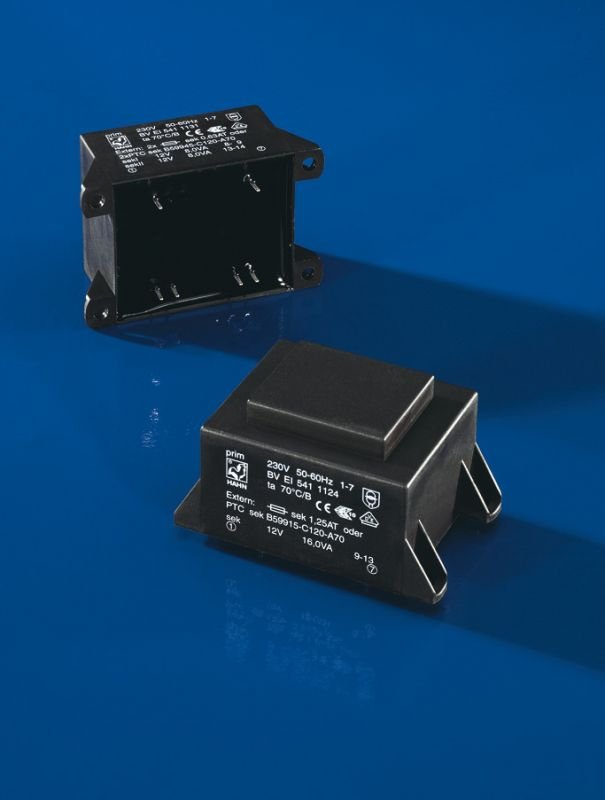

2x12V 2x667mA 16VA Trafo (BV EI541 4141)
328,34 TL
Kategori
Marka
Dorukan Stok No
DRK-7625-TRF
Fiyat
7,50 EUR + KDV
Havale
318,49 TL
(%3,00 havale indirimi)
| Features |
| • Winding of double coated copper
wire for better insulation, vacuum casted, two chambers • Connections for PCB use |
 |
| Technical
Specifications |
|
|
| Temperature Resistance Class: |
Ta 70/B |
| End Temperature in Standard Use: |
120°C |
| Permissible
Overtemperature2): |
50K |
| Primary Voltage (50/60Hz): |
230V AC |
| Power, Max. (Ta 70/B)1): |
16VA |
| Test Voltage: |
4kV/50Hz |
| No-Load Voltage (According to VDE 0570): |
1,5 x UN sec |
| 1)
Taking into Account the Indicated Temperature Resistance Class, 2) At
70°C Ambient Temperature |
|
