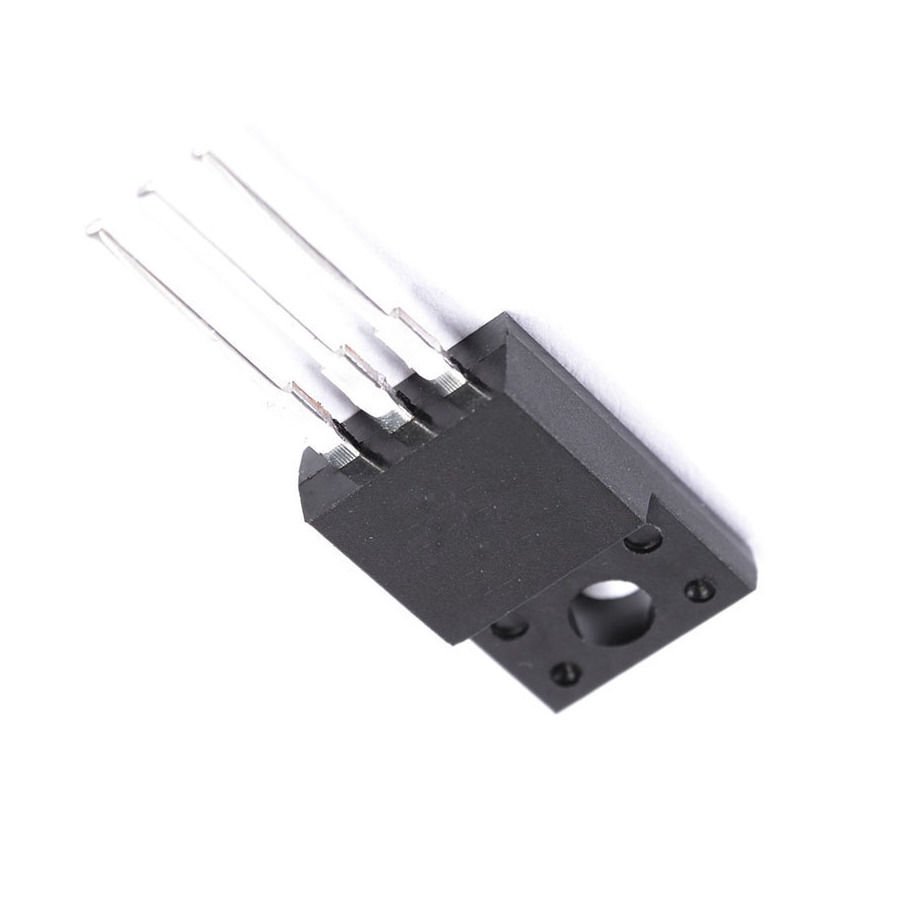

2SK1033
%10
410,15 TL
455,72 TL
Dorukan Stok No
DRK-MASAALT-10.
Fiyat
10,00 USD + KDV
Type Designator: 2SK1033
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pdⓘ - Maximum Power Dissipation: 45 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 2.5 V
|Id|ⓘ - Maximum Drain Current: 20 A
Tjⓘ - Maximum Junction Temperature: 150 °C
Cossⓘ - Output Capacitance: 680 pF
Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.07 Ohm
Package: TO220FP
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pdⓘ - Maximum Power Dissipation: 45 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 2.5 V
|Id|ⓘ - Maximum Drain Current: 20 A
Tjⓘ - Maximum Junction Temperature: 150 °C
Cossⓘ - Output Capacitance: 680 pF
Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.07 Ohm
Package: TO220FP
Bu ürüne ilk yorumu siz yapın!
