2SD1761 (D1761)
(0) Yorum - 0 Puan
23,94 TL
2SD1761 Bipolar Transistor
Characteristics of the 2SD1761 bipolar transistor
- Type - NPN
- Collector-Emitter Voltage: 60 V
- Collector-Base Voltage: 80 V
- Emitter-Base Voltage: 5 V
- Collector Current: 3 A
- Collector Dissipation - 30 W
- DC Current Gain (hfe) - 60 to 320
- Transition Frequency - 8 MHz
- Operating and Storage Junction Temperature Range -55 to +150 °C

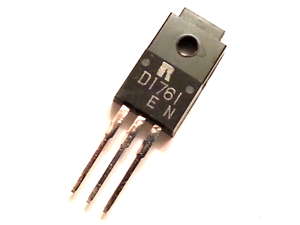

- Package - TO-220F
