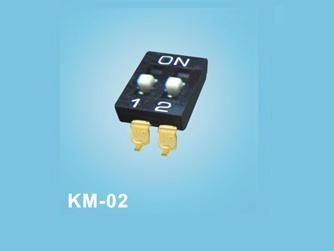

2li SMD Switch
20,99 TL
Kategori
Dorukan Stok No
9KTVWFQE
Fiyat
0,50 USD + KDV
Havale
20,36 TL
(%3,00 havale indirimi)
SPECIFICATION :
I. MECHANICAL
1\ Operation Force :8N Max
2\ Operation Temp :-25 oC to 70 oC
3\ Storage Temp : -40 oC to 85 oC
4\ Stroke : 1.0 mm
II . ELECTRICAL
1\ Electrical Life : 2000 operations cycles per switch 24 VDC , 25mA
2\ Non-Switching Rating : 100mA ,50VDC
3\ Switch rating : 25mA ,24 VDC
4\ Contact resisance : (a) 50mΩ max. at initial (b)100mΩ min. after life test
5\ Insulation Resistance : 100mΩ min ,at 500VDC
6\ Dielectric Strength : 500VAC / 1 minute
7\ Capacitance : 5pF max
8\ Circuit : Single pole single throw
1\ Electrical Life : 2000 operations cycles per switch 24 VDC , 25mA
2\ Non-Switching Rating : 100mA ,50VDC
3\ Switch rating : 25mA ,24 VDC
4\ Contact resisance : (a) 50mΩ max. at initial (b)100mΩ min. after life test
5\ Insulation Resistance : 100mΩ min ,at 500VDC
6\ Dielectric Strength : 500VAC / 1 minute
7\ Capacitance : 5pF max
8\ Circuit : Single pole single throw
III . SOLDERING AND CLEANING
PROCESSES
1\ Keep all switch contacts in their "OFF" position for all operations
2\ WAVW SOLDERING:Recommended Solder Temperature at 240 oC max .20 seconds
3\ HAND SOLEDRING : Use a soldering iron of 30 watts , controlled at 270 oC approximately 2 seconds while applying solder
4\ CLEANING PROCESS W hen vapor methods are used do not subject the seitch to solvents at temperature above 125 o F(51 oC)
PROCESSES
1\ Keep all switch contacts in their "OFF" position for all operations
2\ WAVW SOLDERING:Recommended Solder Temperature at 240 oC max .20 seconds
3\ HAND SOLEDRING : Use a soldering iron of 30 watts , controlled at 270 oC approximately 2 seconds while applying solder
4\ CLEANING PROCESS W hen vapor methods are used do not subject the seitch to solvents at temperature above 125 o F(51 oC)
