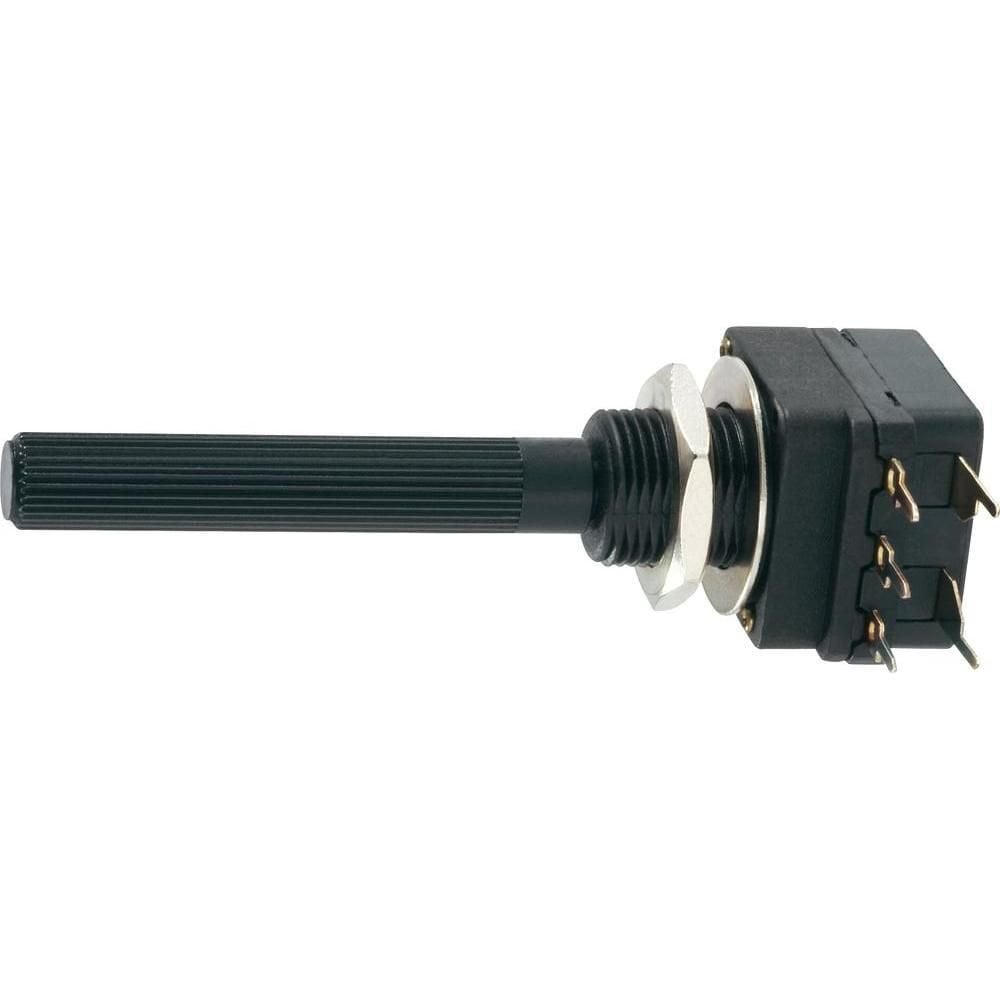

2K5 Anahtarlı Mono Linear Potansiyometre
109,45 TL
| Technical Specifications |
 |
|
| Rated Power (TU = 40°C): |
0,25W |
| Operating Voltage, Max.: |
250V DC |
| Residual Resistance: |
£1x10-3RN |
| Resistance Tolerance |
|
| 100W...1MW: |
±20% |
| >1MW: |
±30% |
| Contact Resistance: |
<10mW |
| Rotation |
|
| Mechanical: |
300° ±5° |
| Electrical: |
280° ±20° |
| Switch |
|
| Nominal Current: |
1A/250V AC |
| Operating Angle: |
30° ±5° |
| Operating Torque: |
0,5...1,5Ncm |
| Stop Strength: |
>40Ncm |
| Temperature Range: |
-25...+70°C |
