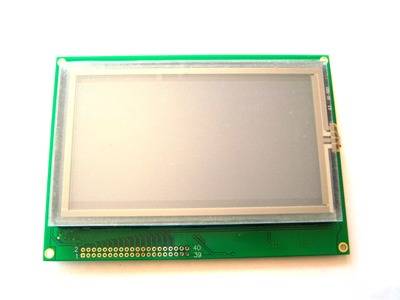

240x128 White/Blue LCD Grafik Modül + Touch Panel (DEM240128DSBHPWT RoHS)
3.157,59 TL
Marka
Dorukan Stok No
PSXYKPU8
Fiyat
72,00 EUR + KDV
Havale
3.062,86 TL
(%3,00 havale indirimi)
LCD-Graphicm+Touch Panel 114x64mm 240x128 Blue
|
Technical Specifications |
|
• High contrast LCD-STN display blue negative • White LED backlight • Suitable analogTouch Panel included • Interface for 8-Bit data bus • Supply voltage, typ. +5,0V • Operating temperature range -20...+70°C |
 |
|
|
|
|
|
|
|
DEM_ |
Type |
Format |
V-Area |
LxWxD |
|
|
|
[HxV] |
[mm] |
[mm] |
|
128064ASBH_ |
STN |
128x64 |
71,7x39,0 |
93x70x14,3 |
|
240128DSBH_ |
STN |
240x128 |
114,0x64,0 |
144x104x15,6 |
|
STN = Super Twisted Nematic, H = Horizontal (Pixel), V = Vertical (Pixel), V-Area = Viewing Area |
||||
|
|
||||
|
|
|
|
|
|
|
DEM_ |
P-Size |
Backl |
B-Colour |
Tamb |
|
|
[mm] |
|
|
[°C] |
|
128064ASBH_ |
0,48x0,48 |
LED |
White (neg.) |
-20...+70 |
|
240128DSBH_ |
0,40x0,40 |
LED |
White (neg.) |
-20...+70 |
|
P-Size = Pixel Size, Backl = Backlight, B-Colour = Backlight Colour, Tamb = Ambient Operating Temperature |
||||
