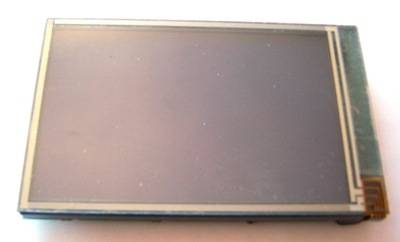

240x128 Black/White LCD Grafik Modül + Touch Panel (EADIP240J-7KLWTP RoHS)
(0) Yorum - 0 Puan
Dorukan Stok No
DHRXFIM6
Fiyat
110,00 EUR + KDV
Havale
4.653,22 TL
(%3,00 havale indirimi)
4.797,13 TL
96,0x61,0mm 240x128 White LCD Graphic Modul +Touch Panel
| Technical Specifications |
| • High contrast LCD-STN/FSTN display • Suitable Touch Panel included • Interface for 8-Bit data bus (EAE-Types RS232/I²C/SPI) • Plug-in easily to a socket connector or solder directly into a PCB • Supply voltage, typ. +5,0V • Operating temperature range -20...+70°C |
 |
|
|
|
|
|
|
|
EA(E)DIP_
|
Type
|
Format
|
V-Area
|
LxWxD
|
|
|
|
[HxV]
|
[mm]
|
[mm]
|
|
240J-7KLWTP
|
FSTN
|
240x128
|
96,0x61,0
|
113x70x12,3
|
| STN = Super Twisted Nematic,, FSTN = Film Super Twisted Nematic, H = Horizontal (Pixel), V = Vertical (Pixel), V-Area = Viewing Area |
||||
|
| EA(E)DIP_ | P-Size | Backl | B-Colour | Tamb |
| [mm] | [°C] | |||
| 240J-7KLWTP | 0,35x0,41 | LED | White | -20...+70 |
P-Size = Pixel Size, Backl = Backlight, B-Colour = Backlight Colour, Tamb = Ambient Operating Temperature
