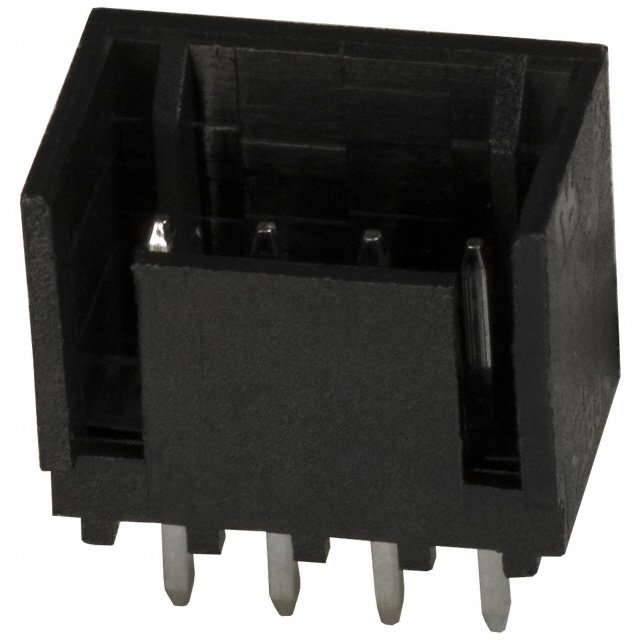

2-644861-4(A30933-ND)
(0) Yorum - 0 Puan
13,08 TL
Select All
CategoriesConnectors, Interconnects
Rectangular Connectors - Headers, Male Pins
ManufacturerTE Connectivity AMP Connectors
SeriesMTA-100
Packaging ?Bulk ?
Part StatusActive
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating0.100" (2.54mm)
Number of Positions4
Number of Rows1
Row Spacing - Mating-
Number of Positions LoadedAll
StyleBoard to Cable/Wire
ShroudingShrouded - 4 Wall
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeFriction Lock
Contact Length - Mating0.200" (5.08mm)
Contact Length - Post0.140" (3.56mm)
Overall Contact Length0.440" (11.18mm)
Insulation Height0.410" (10.41mm)
Contact ShapeSquare
Contact Finish - MatingTin
Contact Finish Thickness - Mating-
Contact Finish - PostTin
Contact MaterialCopper Alloy
Insulation MaterialPolyester
Features-
Operating Temperature-55°C ~ 105°C
Ingress Protection-
Material Flammability RatingUL94 V-0
Insulation ColorBlack
Current Rating (Amps)Varies by Wire Gauge
Voltage Rating250VAC
Mated Stacking Heights-
Contact Finish Thickness - Post-
ApplicationsGeneral Purpose
