2.54mm 1x 20-Pin 37,8mm Sn (ASS02038Z)
50,41 TL
Kategori
Marka
Dorukan Stok No
DRK-7264
Fiyat
1,15 EUR + KDV
Havale
48,89 TL
(%3,00 havale indirimi)

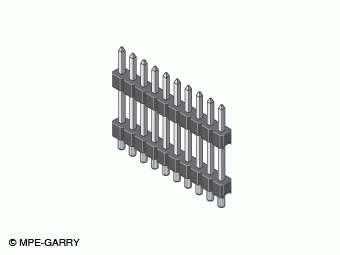

MPE GARRY High-Quality Sandwich Pin Headers
| Technical
Specifications |
 |
|
| Insulation Shell: |
Thermoplastic, UL94V-0 |
| Contact Material (DIN17660): |
CuZn (brass) |
| Contact Surface: |
tinned |
| Insulation Resistance, Max.: |
40mW |
| Rated Current: |
3A |
| Rated Voltage: |
250VRMS/250V AC |
| Breakdown Voltage (1min.): |
500Vrms |
| Temperature Range: |
-40...+105°C |
| Short Term (10s): |
+260°C |
| Solderability: |
IEC 68-2-20 Tb |
|
|

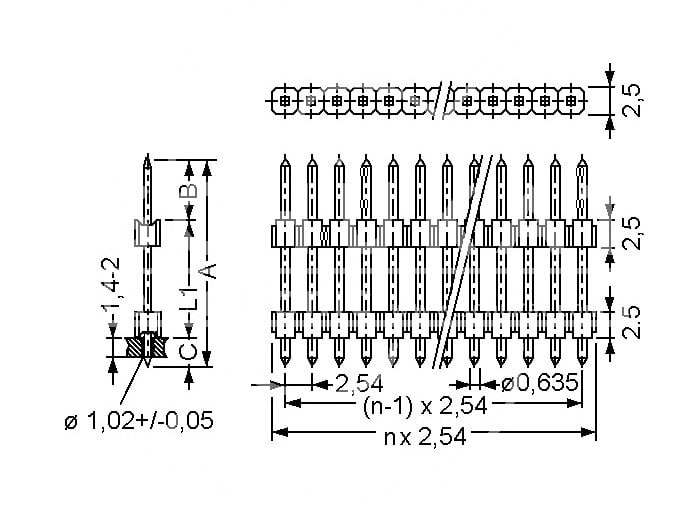

| Dimensions |
| Pin Cross Section: |
0,635x0,635mm |
|
|
|
||||
| Part Nr. |
A |
B |
L1 |
C |
| |
[mm] |
[mm] |
[mm] |
[mm] |
| ASS02038Z |
37,8 |
6,5 |
28,0 |
3,3 |
