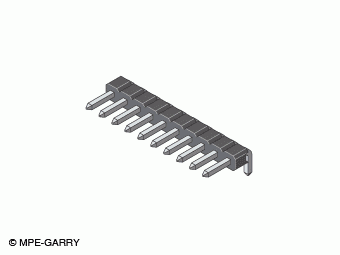

1x50 Tek Sıra Erkek Pin Header 90° Au (088-1-050-0-F-XS0 ) ASL050GW
41,16 TL
Kategori
Marka
Dorukan Stok No
DRK-7347-2
Fiyat
0,90 EUR + KDV
| Technical Specifications |
 |
|
| Insulating Shell: |
Thermoplastic, UL94V-0 |
| Contact Material: |
Copper alloy |
| Contact Surface |
|
| ASL050ZW: |
Tin-plated |
| ASL050TGW: |
Part Gold-plated |
| ASL050GW: |
Gold-plated |
| Rated Current: |
3A |
| Rated Voltage: |
250V AC |
| Breakdown Voltage (1min.): |
500Vrms |
| Temperature Range: |
-40...+105°C |
| Short Term (10s): |
+260°C |
| Solderability: |
IEC 68-2-20 Tb |
|
|

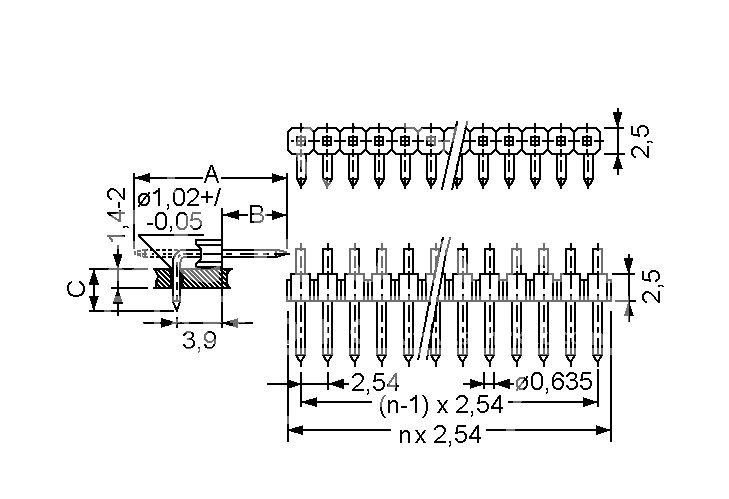

| Dimensions |
|
|
| Pin Length, Complete (A): |
14,7mm |
| Pin Length, Plug-in Area (B): |
6,9mm |
| Pin Length, Solder Area (C): |
3,3mm |
| Pin Cross Section: |
0,635x0,635mm |
|
|
