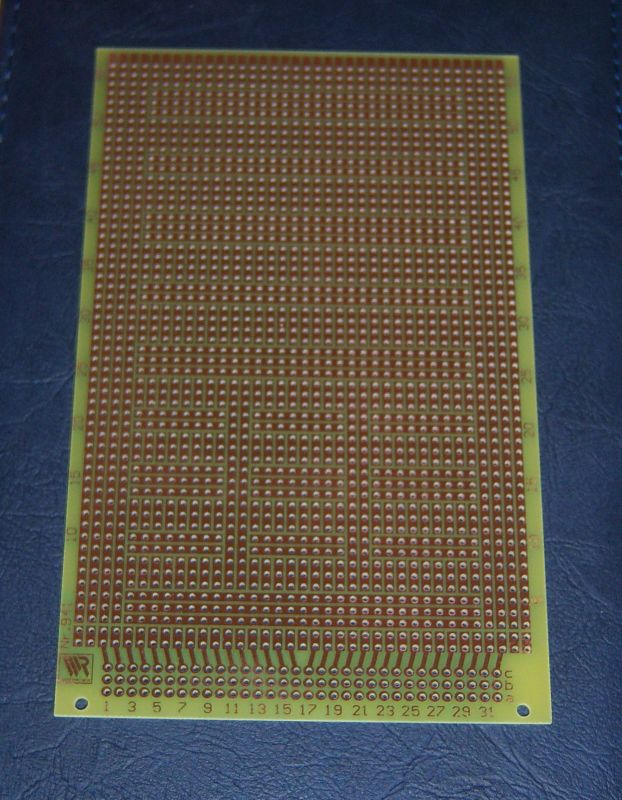

160x100mm Euro Board IC EP 41612 (UP941EP)
210,14 TL
Kategori
Marka
Dorukan Stok No
ASUCJW48
Fiyat
4,80 EUR + KDV
Havale
203,83 TL
(%3,00 havale indirimi)
Features
For 14 to 40 pin, IC-socket in suitable in dual inline pitch
PCB track on the component side
Material: Epoxy
Socket: 32-/64-/96-pin, DIN 41612, pitch: 2,54mm
37-pin, direct, pitch: 2,54mm
| • Drilled boards with Cu layer made of laminated paper or epoxy resin glass fabric • For building and testing circuit solutions, ideal for small series • With earthing strips for sockets |
 |
| Technical Specifications |
|
|
| Dimensions: |
160x100mm |
| UP911HP: |
50x110mm |
| Pitch: |
2,54mm |
| Holes Ø: |
1mm |
| Cu Layer: |
35µm |
| Material Thickness: |
1,5mm |
| UP941EP |
| Microprocessor-Universal Board, Cu single-sided |
|
PCB track on the component side
Material: Epoxy
Socket: 32-/64-/96-pin, DIN 41612, pitch: 2,54mm
37-pin, direct, pitch: 2,54mm
