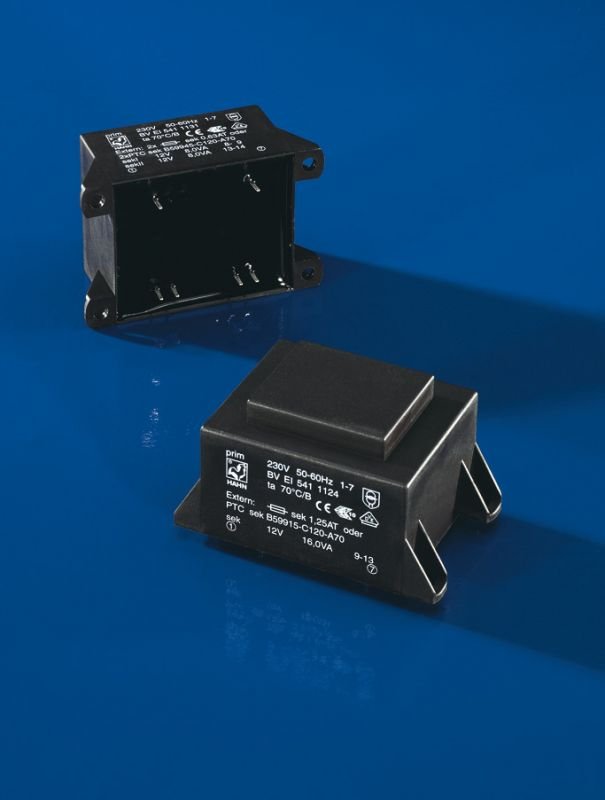

12V 883mA 10VA Trafo (BV EI481 1172)
271,42 TL
Kategori
Marka
Dorukan Stok No
DRK-3053-78.
Fiyat
6,20 EUR + KDV
Havale
263,28 TL
(%3,00 havale indirimi)
| Features |
| • Winding of double coated copper
wire for better insulation, vacuum casted, two chambers • Connections for PCB use |
 |
| Technical
Specifications |
|
|
| Temperature Resistance Class: |
Ta 70/B |
| End Temperature in Standard Use: |
120°C |
| Permissible
Overtemperature2): |
50K |
| Primary Voltage (50/60Hz): |
230V AC |
| Power, Max. (Ta 70/B)1): |
10VA |
| Test Voltage: |
4kV/50Hz |
| No-Load Voltage (According to VDE 0570): |
2x UN sec |
| 1)
Taking into Account the Indicated Temperature Resistance Class, 2) At
70°C Ambient Temperature Teknik Döküman için Tıklayınız |
|
