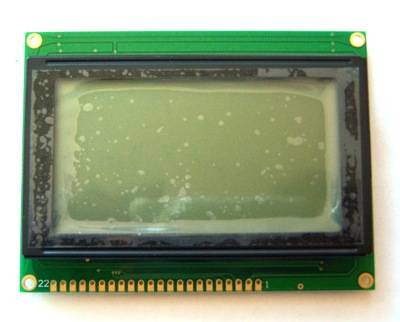

128x64 RGB LCD Grafik Modül (DEM128064AFGHPR RoHS)
927,30 TL
Kategori
Marka
Dorukan Stok No
DRK-YENİ34RAF..
Fiyat
22,00 USD + KDV
Havale
899,48 TL
(%3,00 havale indirimi)
71,7x39,0mm 128x64 RGB LCD Graphic Modul
| Technical Specifications |
| • High contrast LCD-FSTN display • LED backlight selectable: red, green or blue • Interface for 8-Bit data bus • Supply voltage, typ. +5,0V • Operating temperature range -20...+70°C |
 |
| DEM_ |
Type |
Format |
V-Area |
LxWxD |
| [HxV] |
[mm] |
[mm] |
||
| 128064AFGH_ | FSTN |
128x64 |
71,7x39,0 |
93x70x13,5 |
| FSTN = Film Super Twisted Nematic, H = Horizontal (Pixel), V = Vertical (Pixel), V-Area = Viewing Area |
||||
|
||||
| DEM_ |
P-Size |
Backl |
B-Colour |
Tamb |
| [mm] |
[°C] |
|||
| 128064AFGH_ | 0,48x0,48 |
LED |
R/G/B |
-20...+70 |
| P-Size = Pixel Size, Backl = Backlight, B-Colour = Backlight Colour, Tamb = Ambient Operating Temperature |
||||
